Reverse Osmosis
Industrial
Pure Water
HS-Thin Film Composite Low Pressure
Element Specifications
Model |
Flow Rate
GPD
(M3/D) |
Average
Rejection
(%) |
Surface
Area
(ft2) |
Dimension
(in) |
| A |
B |
C |
HS-BW-2540FF* |
710(2.68) |
99.5 |
27 |
40 |
2.38 |
0.750 |
HS-BW-4040FF* |
2,300(8.69) |
99.5 |
88 |
40 |
3.88 |
0.750 |
HS-BW-4040F |
2,350(8.88) |
99.5 |
90 |
40 |
3.88 |
0.625 |
HS-BW-8040F |
9,200(34.78) |
99.5 |
350 |
40 |
7.88 |
1.125 |
Performance is based on 2,000 ppm NaCl
solution at 200 psig net driving pressure, 77°F(25 °C) and 15% recovery. Individual
element performance may vary up to 15%.
Operating Parameters:
| Temperature: |
Maximum 50
°C |
| pH: |
2-11 (CIP:
1-11.5) |
| Pressure: |
Maximum 600
psig |
| Free
chlorine: |
Maximum
<0.l ppm |
| Silt
density index: |
Maximum 5 |
| Differential
pressure: |
Maximum 15
psig per element not to exceed 50 psig per housing. |
*Stinger design
Rejection Characteristics
Ions |
Feed Analysis (ppm) |
Rejection (%) |
Sodium, Na+ |
100 |
99.6 |
Potassium, K+ |
10 |
99.2 |
Calcium, Ca+2 |
50 |
99.7 |
Magnesium, Mg+2 |
10 |
99.2 |
Chloride, Cl- |
180 |
99.2 |
Alkalinity, HCO3- |
100 |
99.2 |
Sulfate, SO4-2 |
50 |
99.8 |
Nitrate, NO3- |
2 |
99.2 |
Silica, SiO2 |
1 |
98.8 |
TDS |
~500 |
99.5 |
Performance is based on fouling
free tap water at 200 psig net driving pressure, 77°F (25 °C), pH 7.8 and 15% recovery.
Individual element performance may vary up to 15%.

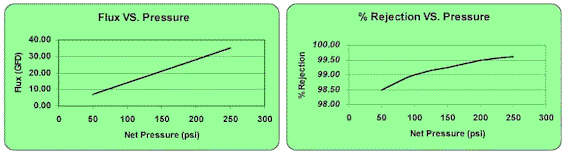

Performance
Characteristics
|
