                                              Nanofiltration

                                               Process

                                                Non-charged

     HS-Thin Film Composite Nanofiltration Element Specifications

Model

Flow Rate
GPD
(M3/D)

Average
Rejection
(%)

Surface
Area
(ft2)

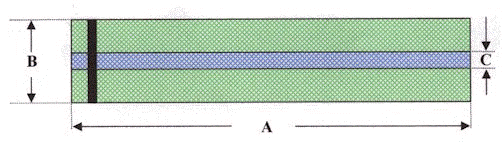

Dimension
(in)
A B C

HS-NPN-2540F*

1,600

 6.1

98

 90

40

 4.0 0.75

HS-NPN-4040FE

 1,150 4.4 98 63

40

 4.0 0.75

HS-NPN-8040F

 6,500 24.6 98 350 80 7.9 1.50

HS-NPN-8040FE

 4,500 17.1 98 275 80 7.9 1.50

Performance is based onMgSO4 2,000-ppm  solution at 100-psig net driving pressure,77°F (25 °C)  ,pH 8 and 15% recovery. Individual element performance may vary up to 15%.



Operating Parameters:

Temperature: Maximum 45 °C
Pressure: Maximum 4
Recommend: 100-200 psi
Free chlorine: <0.1ppm
Silt density index: <5.0 (15minutes)
pH range: 4-11 continuous, 2-12 for cleaning

  *Stinger design

　

　
