HS-BP HS-NP1 HS-NP2 HS-NPN HS-PN HS-UF1


　

                                                    Nanofiltration

                                                    Industrial

                                                    Process

     HS-Thin Film Composite Nanofiltration Element Specifications

Model

Flow Rate
GPD
(M3/D)

Average
Rejection
(%)

Surface
Area
(ft2)

Dimension
(in)
A B C

HS-NP2-2540F*

840(3.18)

96

27

40

2.38

0.750

HS-NP2-4040F

2,800(10.58)

96

90

40

3.88

0.625

HS-NP2-8040F

10,200(38.56)

96

350

40

7.88

1.18

Performance is based on 2,000 ppm MgSO4 solution at 100 psig net driving pressure, 77°F (25 °C) and 10% recovery. Individual element performance may vary up to 15%.

　

　



　

Operating parameters:

     Temperature: Maximum 50 °C
     pH: 2-11 (CIP: 2-11.5)
     Pressure: Maximum 500 psig
     Free chlorine: 1,000-ppm Hours
     Differential pressure: Maximum 15 psig per element not to exceed 50 psig per housing.

  *Stinger design

　

　

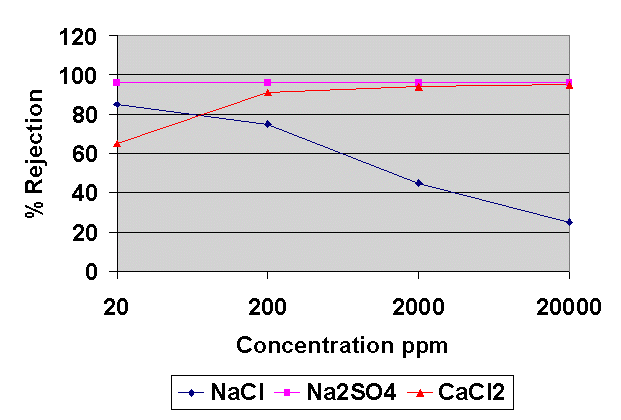

Performance Characteristics

　


　

　
