HS-BP HS-NP1 HS-NP2 HS-NPN HS-PN HS-UF1


　

                                                    Nanofiltration

                                                           Industrial

                                                           Process

　

HS-Thin Film Composite Nanofiltration Element Specifications

Model Flow Rate
GPD
(M3/D)		 Average
Rejection
(%)		 Surface
Area
(ft2)		 Dimension
(in)
A B C
HS-NP1-2540FF* 600(2.27) 98 27 40 2.38 0.750
HS-NP1-4040F 2,000(7.56) 98 90 40 3.88 0.625
HS-NP1-8040F 8,000(30.24) 98 350 40 7.88 1.187

Performance is based on 2,000 ppm MgSO4 solution at 100 psig net driving pressure,77°F (25 °C)  and 10% recovery. Individual element performance may vary up to 15%.

　

　



　

Operating Parameters

    Temperature: Maximum 50 °C
     pH: 2-11 (CIP: 1-11.5)
     Pressure: Maximum 500 psig
     Free chlorine: 1,000-ppm Hours
     Differential pressure: Maximum 15 psig per element not to exceed 50 psig per housing.

*Stinger design

　

　

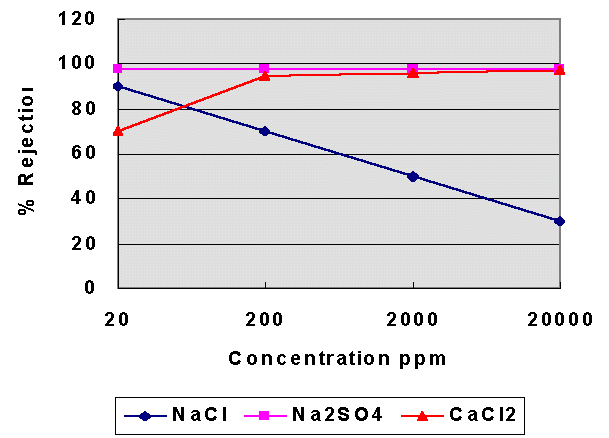

              Performance Characteristics


　

　
