Reverse Osmosis
Residential
Pure Water
HS-Thin Film
Composite Residential Element Specifications
Model |
Flow Rate
GPD
(M3/D) |
Average
Rejection
(%) |

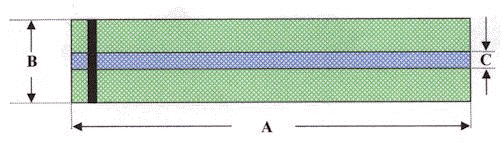

Dimension
(in) |
| A |
B |
C |
D |
HS-3680 |
36(5.7) |
97 |
1.5 |
0.678 |
10 |
11.75 |
HS-5080 |
50(7.9) |
97 |
1.8 |
0.678 |
10 |
11.75 |
HS-7580 |
75(11.6) |
97 |
1.8 |
0.678 |
10 |
11.75 |
HS-10080 |
100(15.8) |
97 |
2 |
0.678 |
10 |
11.75 |
Performance is based on 500
ppm NaCl solution at 80 psig net driving pressure, 77°F (25 °C) and 20% recovery.
Individual element performance may vary up to 15%
HS-Cellulose
Acetate Residential Element Specifications
Model |
Flow Rate
GPD
(M3/D) |
Average
Rejection
(%) |
Dimension
(in) |
A |
B |
C |
D |
HS-C1680 |
16(2.5) |
94 |
1.8 |
0.678 |
10 |
11.75 |
HS-C2480 |
24(3.8) |
94 |
1.8 |
0.678 |
10 |
11.75 |
HS-C3280 |
32(5.0) |
94 |
1.8 |
0.678 |
10 |
11.75 |
Performance is based on 500 ppm NaCl
solution at 80 psig net driving pressure, 77°F (25 °C) and 20% recovery. Individual
element performance may vary up to 15%
Operating
Parameters:
HS-Thin Film Composite Residential
Products:
|
Temperature: |
Maximum
40 °C |
|
pH |
4-10 |
|
Pressure: |
Maximum
150 psig |
|
Free chlorine: |
Maximum
<0.l ppm |
|
Silt density index: |
Maximum
5 |
HS-Cellulose Acetate Residential
Products:
| Temperature:
|
Maximum 35 °C |
| pH: |
5-8 |
| Pressure: |
Maximum 150 psig |
| Free
chlorine: |
Maximum <1 ppm |
| Silt
density index: |
Maximum 5 |
Rejection Characteristics
Ions |
HS-Thin Film Composite |
HS-Cellulose Acetate |
Sodium, Na+ |
97.4 |
94.0 |
Potassium, K+ |
98.1 |
94.5 |
Calcium, Ca+2 |
99.0 |
96.5 |
Magnesium, Mg+2 |
98.8 |
95.8 |
Chloride, Cl- |
97.5 |
93.6 |
Alkalinity, HCO3- |
97.2 |
92.8 |
Sulfate, SO4-2 |
99.0 |
96.1 |
Nitrate, NO3- |
97.5 |
92.1 |
Silica, SiO2 |
97.0 |
93.0 |
TDS |
98.1 |
94.2 |
Performance is
based on fouling free tap water at 60 psig net driving pressure, 77°F
(25 °C), pH 7.8 and 15% recovery. Individual element performance may vary up to 15%.
|
HYDROSEP INC.
